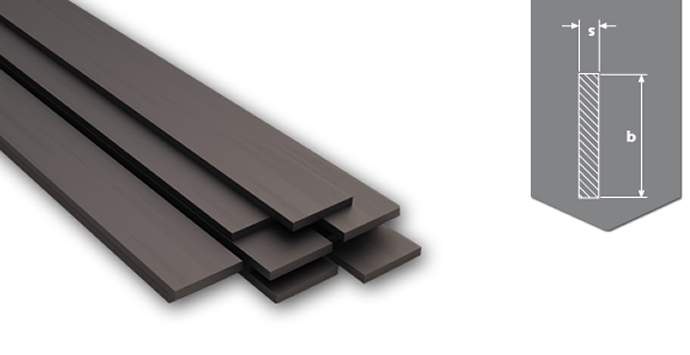

Steel Flat Bars

	2,8	3	4	5	6	7	8	9	10	12	15	16	18	20	25	30	40
10	0.220	0.236	0.314	0.393
11	0.242	0.259	0.345	0.432	0.518
12	0.264	0.283	0.377	0.471	0.565	0.659	0.754
14	0.308	0.330	0.440	0.550	0.659	0.769	0.879
16	0.352	0.377	0.502	0.628	0.754	0.879	1.005
18	0.396	0.424	0.565	0.707	0.848	0.989	1.130
20	0.440	0.471	0.628	0.785	0.942	1.099	1.256	1.413	1.570
23	0.506	0.542	0.722	0.903	1.083	1.264	1.444	1.625	1.806
25	0.550	0.589	0.785	0.981	1.178	1.374	1.570	1.766	1.963
28	0.615	0.659	0.879	1.099	1.319	1.539	1.758	1.978	2.198
30	0.659	0.707	0.942	1.178	1.413	1.649	1.884	2.120	2.355
35	0.769	0.824	1.099	1.374	1.649	1.923	2.198	2.473	2.748
38	0.835	0.895	1.193	1.492	1.790	2.088	2.386	2.685	2.983	3.580
40	0.879	0.942	1.256	1.570	1.884	2.198	2.512	2.826	3.140	3.768	4.710	5.024	5.652	6.280
45		1.060	1.413	1.766	2.120	2.473	2.826	3.179	3.533	4.239	5.299	5.652	6.359	7.065
50	1.099	1.178	1.570	1.963	2.355	2.748	3.140	3.533	3.925	4.710	5.888	6.280	7.065	7.850	9.813	11.775
60				2.355	2.826	3.297	3.768	4.239	4.710	5.622	7.065	7.536	8.478	9.420	11.775	14.130	18.840
65					3.062	3.572	4.082	4.592	5.103	6.123	7.654	8.164	9.185	10.205	12.756	15.308	20.410
70					3.297	3.847	4.396	4.946	5.495	6.594	8.243	8.792	9.891	10.990	13.738	16.485	21.980
75					3.533	4.121	4.710	5.299	5.888	7.065	8.831	9.420	10.598	11.775	14.719	17.663	23.550
80					3.768	4.396	5.024	5.652	6,280	7.536	9.420	10.048	11.304	12.560	15.700	18.840	25.120
90					4.239	4.946	5.652	6.359	7.065	8.478	10.598	11.304	12.717	14.130	17.663	21.195	28.260
100					4.710	5.495	6.280	7.065	7.850	9.420	11.775	12.560	14.130	15.700	19.625	23.550	31.400
110					5.181	6.045	6.908	7.772	8.635	10.362	12.953	13.816	15.543	17.270	21.588	25.905	34.540
120					5.652	6.594	7.536	8.478	9.420	11.304	14.130	15.072	16.956	18.840	23.550	28.260	37.680
125					5.888	6.869	7.850	8.831	9.813	11.775	14.719	15.700	17.663	19.625	24.531	29.438	39.250
130					6.123	7.144	8.164	9.185	10.205	12.246	15.308	16.328	18.369	20.410	25.513	30.615	40.820
140					6.594	7.693	8.792	9.891	10.990	13.188	16.485	17.584	19.782	21.980	27.475	32.970	43.960
150					7.065	8.243	9.420	10.598	11.775	14.130	17.663	18.840	21.195	23.550	29.438	35.325	47.100
160									12.560	15.072	18.840	20.096	22.608	25.120	31.400	37.680	50.240

Length	Standart	Quality
5500 mm 5800 mm 6000 mm 6100 mm 12000 mm	DIN EN ASTM	S235JR[ST37] S275JR[ST44] S355JR[ST52] & ASTM A 36 ASTM A 572 Grade 50
