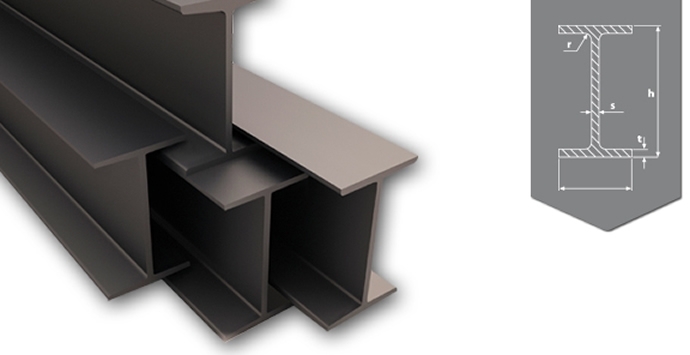

IPE Beams

IPE

Size	Depth (h)	Width (b)	Thickness Web (s)	Thickness Flange (t)	Weight
	mm	mm	mm	mm	Kg/m
80	80	46	3,8	5,2	6,0
100	100	55	4,1	5,7	8,1
120	120	64	4,4	6,3	10,4
140	140	73	4,7	6,9	12,9
160	160	82	5,0	7,4	15,8
180	180	91	5.3	8	18.80
200	200	100	5.6	8.5	22.40
220	220	110	5.9	9.2	26.20
240	240	120	6.2	9.8	30.70
270	270	135	6.6	10.2	36.10
300	300	150	7.1	10.7	42.20

IPE A

Size	Depth (h)	Width (b)	Thickness Web (s)	Thickness Flange (t)	Weight
	mm	mm	mm	mm	Kg/m
180	177	91	4.3	6.5	15.40
200	197	100	4.5	7	18.40
220	217	110	5	7.7	22.20
240	237	120	5.2	8.3	26.20
270	267	135	5.5	8.7	30.70
300	297	150	6.1	9.2	36.50

IPE AA

Size	Depth (h)	Width (b)	Thickness Web (s)	Thickness Flange (t)	Weight
	mm	mm	mm	mm	Kg/m
78	78	46	3,2	4,2	4,9
100	97,6	55	3,6	4,5	6,7
120	117	64	3,8	4,8	8,4
180	176.4	91	4.3	6.2	14.90
200	196.4	100	4.5	6.7	17.95
220	216.4	110	4.7	7.4	21.20
240	236.4	120	4.8	8	24.90

IPE AAAA

Size	Depth (h)	Width (b)	Thickness Web (s)	Thickness Flange (t)	Weight
	mm	mm	mm	mm	Kg/m
80	76	46	3	3	4,03
100	95,5	55	3	3,5	5,42

Length	Standart	Quality
5500 mm 5800 mm 6000 mm 6100 mm 12000 mm	DIN EN ASTM	S235JR[ST37] S275JR[ST44] S355JR[ST52] & ASTM A 36 ASTM A 572 Grade 50
