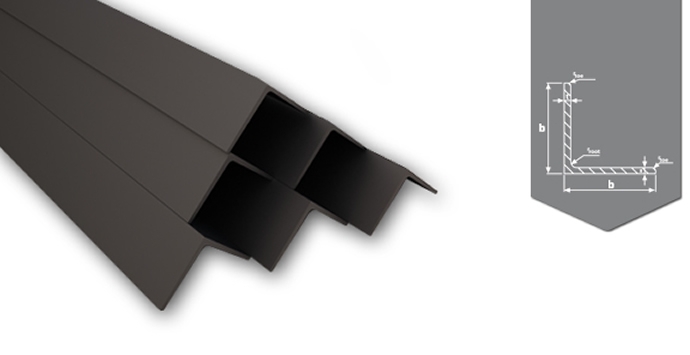

Steel Equal Angles

	2	2,2	2,5	3	3,5	4	5	6	7	8	9	10	12
18	0.544	0,594	0,668	0.787	0,903
20	0,607	0,663	0,746	0.882	1,013
23	0,701	0,767	0,864	1.023	1,178
25	0,764	0,836	0,943	1,117	1,288	1.455	1,777	2,083
28	0,858	0,939	1,060	1,258	1,453	1.643	2,012	2,365
30	0,932	1,019	1,149	1.363	1,573	1.779	2,180	2,564
33	1,026	1,123	1,267	1.505	1,738	1.968	2,415	2,847
35	1,089	1,192	1,346	1.599	1,848	2.093	2,572	3,035
38	1,183	1,296	1,463	1,740	2,013	2.282	2,808	3,318
40		1,374	1,551	1.844	2,132	2.417	2,974	3,516
43				1.985	2,297	2.605	3,210	3,798
45			1,758	2.090	2,418	2,742	3,378	3,998
48				2.231	2,583	2.930	3,613	4,280
50				2.326	2,693	3.056	3,770	4,469
60						3.696	4,568	5,423	6.263	7,088
63						3.885	4,803	5,706	6.593	7,464
65						4.025	4.974	5,909	6.827	7,730
70							5,367	6,380	7,377	8,358	9,323	10.273
75							5,575	6,867	7,942	9,002	10.046	11.074
80								7,338	8.492	9,630	10.752	11.859
90								8,297	9.608	10.904	12.183	13,447
100								9,259	10,727	12.179	13,615	15,036	17,831
120										14.712	16.462	18.197	21,620

Length	Standart	Quality
5500 mm 5800 mm 6000 mm 6100 mm 12000 mm	DIN EN ASTM	S235JR[ST37] S275JR[ST44] S355JR[ST52] & ASTM A 36 ASTM A 572 Grade 50
